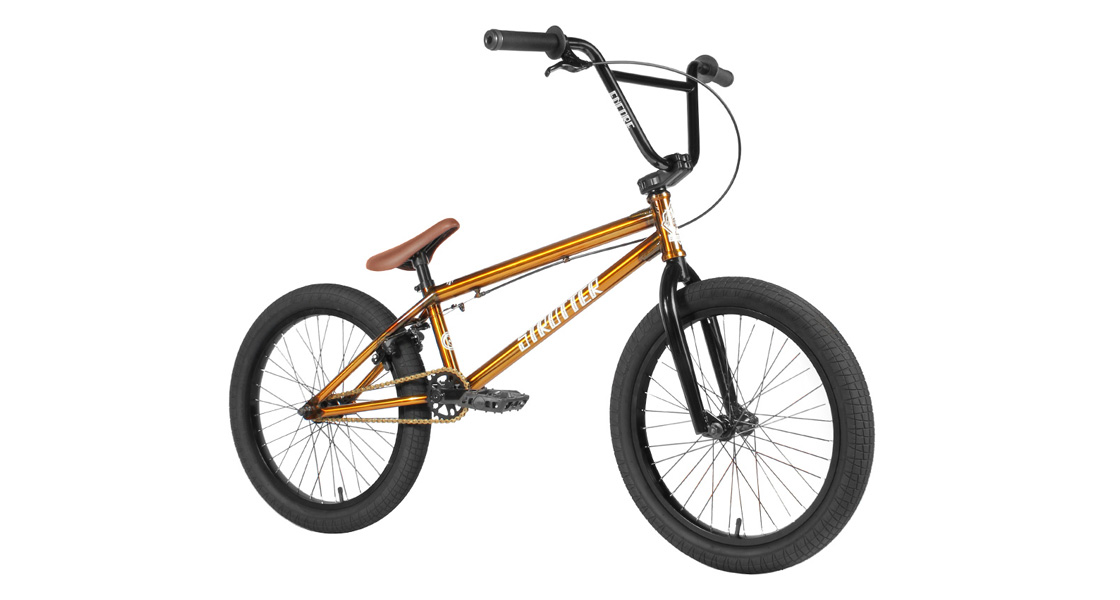

2017 Strutter - Trans Gold
2017 Strutter Trans Gold
Technical Specifications
| Top Tube Length: | 20.75" |
| Frame: | Hi-tensile steel frame with chromoly head/down tube, HT(°): 74.5, CS ("): 13.25, SO ("): 8, BB ("): 11.5, ST (°): 71 |
| Seat Clamp: | Alloy |
| Fork: | Taper leg fork, chromoly steerer tube, integrated crown race |

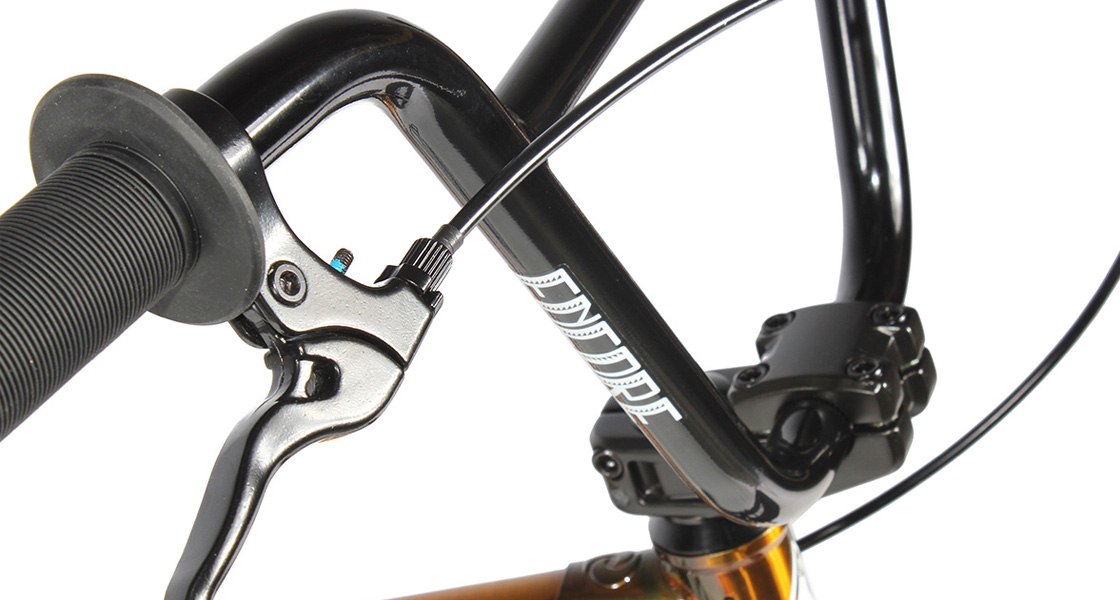

| Handlebar: | H: 8.7", W: 29", hi-tensile steel |
| Stem: | Alloy "High Rise" top load - 50mm |
| Grips: | Mushroom 147mm |
| Headset: | Integrated sealed 1-1/8" |
| Brake: | Wider pull U-Brake for 2.4 tire width |
| Brake Lever: | Alloy for U-Brake |
| Gearing: | 25/9 |
| Cranks: | Chromoly 3 piece, tubular 175mm |
| Bottom Bracket: | Sealed Mid BB 19mm |

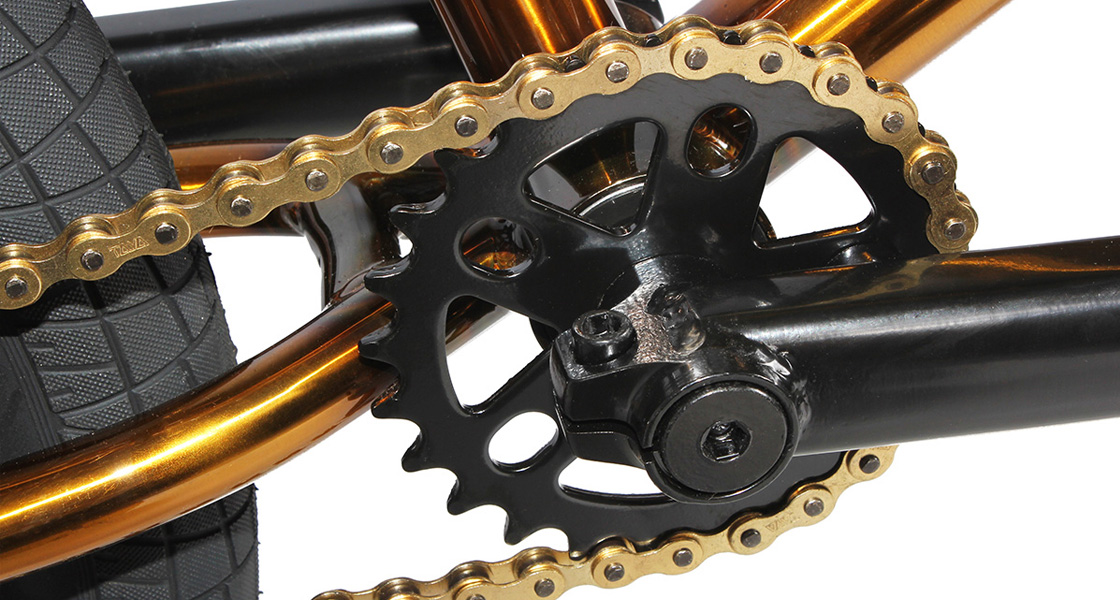

| Sprocket: | Steel, 25T |
| Pedals: | Odyssey Twisted PC plastic 9/16", chromoly spindle |
| Chain: | 410H |
| Front Hub: | 3/8" unsealed alloy, 17mm axle nuts |
| Front Rim: | Alloy single wall 36H |
| Front Tire: | Innova 20 x 2.30 |
| Rear Hub: | 14mm, fully sealed cassette with 9T, 1 piece driver, 17mm axle nuts |
| Rear Rim: | Alloy single wall 36H |
| Rear Tire: | Innova 20 x 2.30 |
| Seat: | VELO 3mm padded leather cover |
| Seat Post: | Integrated with seat |
| Pegs: | N/A |
| Weight: | 25.09 lbs |
