2016 Coda 24 - Trans Black
2016 Coda 24 - Trans Black

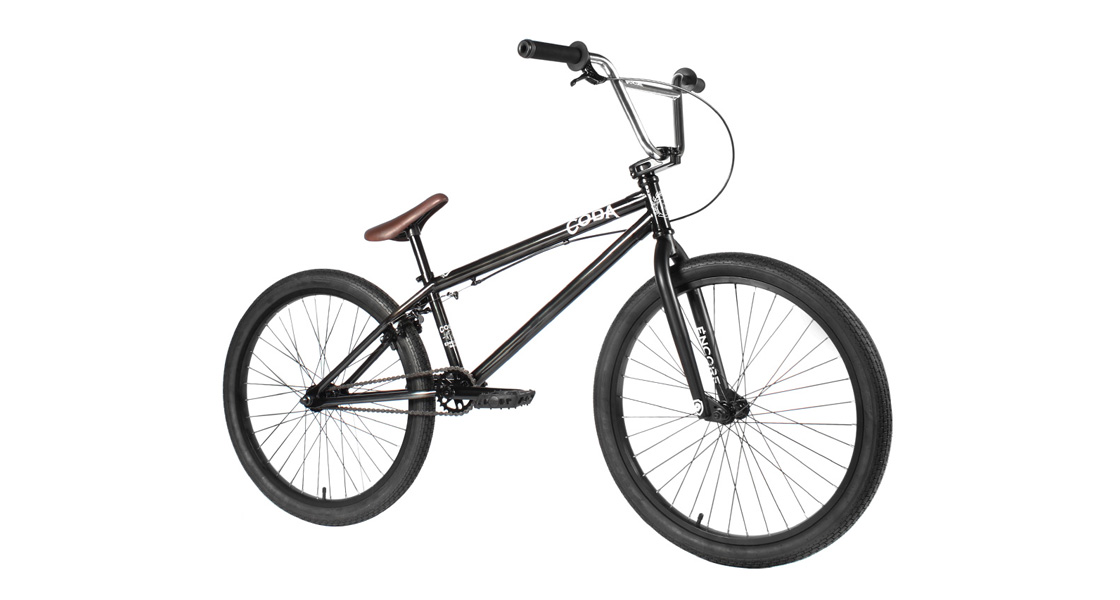

Tthe 24" Coda is perfect for cruising around town but durable enough to get a little rad with. Built on a 24" wheelset and 21.75" frame, the Coda has ample room. Lots of added durability with sealed front and rear hubs, double wall rear wheels, chromoly down tube, top tube and head tube on the frame as well as full chromoly tapered leg forks.
Keep down time to a minimum with low maintenance components like fully sealed rear cassette, sealed integrated headset and sealed Mid bottom bracket.
Technical Specifications
| Top Tube Length: | 21.75" |
| Frame: | Chromoly down tube, top tube and head tube, HT(°): 74.5, CS ("): 15.25, SO ("): 9.5, BB ("): 13, ST (°): 71 |
| Seat Clamp: | Alloy |
| Fork: | Taper leg fork, 100% chromoly, integrated crown race |
| Handlebar: | 7.75" rise, 28" width, 12° backsweep, 4° upsweep, hi-tensile steel |

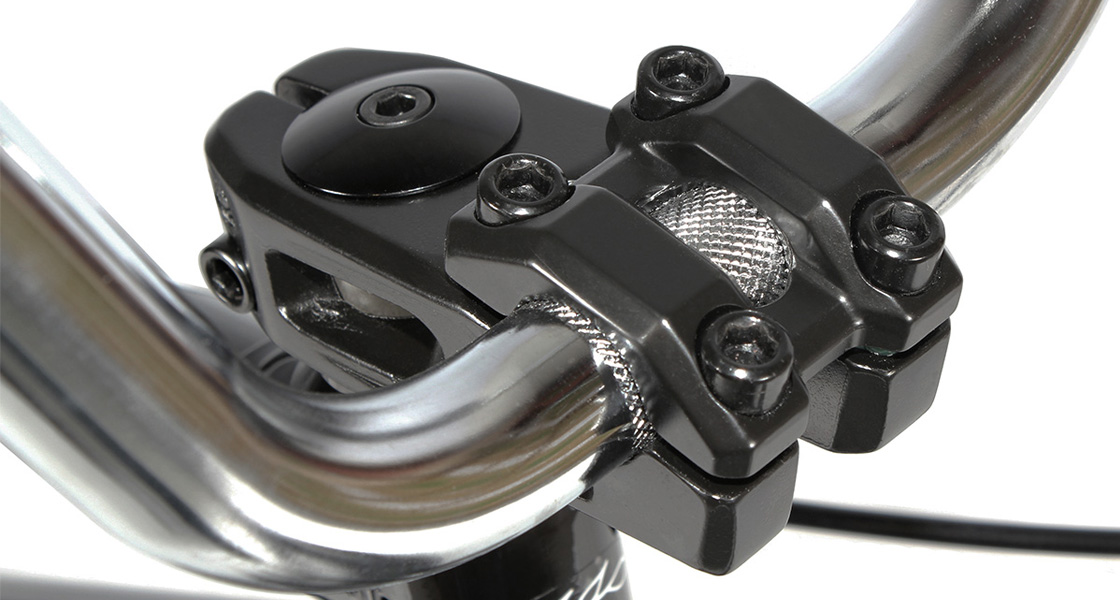

| Stem: | Alloy top load - 53mm w/machined face plate |
| Grips: | Mushroom 147mm |
| Headset: | Integrated sealed 1-1/8" |
| Brake: | Wider pull U-Brake for 2.4 tire width |
| Brake Lever: | Alloy for U-Brake |
| Gearing: | 25/9 |
| Cranks: | Chromoly 3 piece, tubular 175mm |
| Bottom Bracket: | Sealed Mid BB 19mm |
| Sprocket: | Steel, 25T |
| Pedals: | Odyssey Twisted PC plastic 9/16", chromoly spindle |
| Chain: | 410H |
| Front Hub: | 3/8" sealed bearing alloy, 17mm axle nuts |
| Front Rim: | Alloy single wall 36H |
| Front Tire: | Innova 24 x 2.125 |

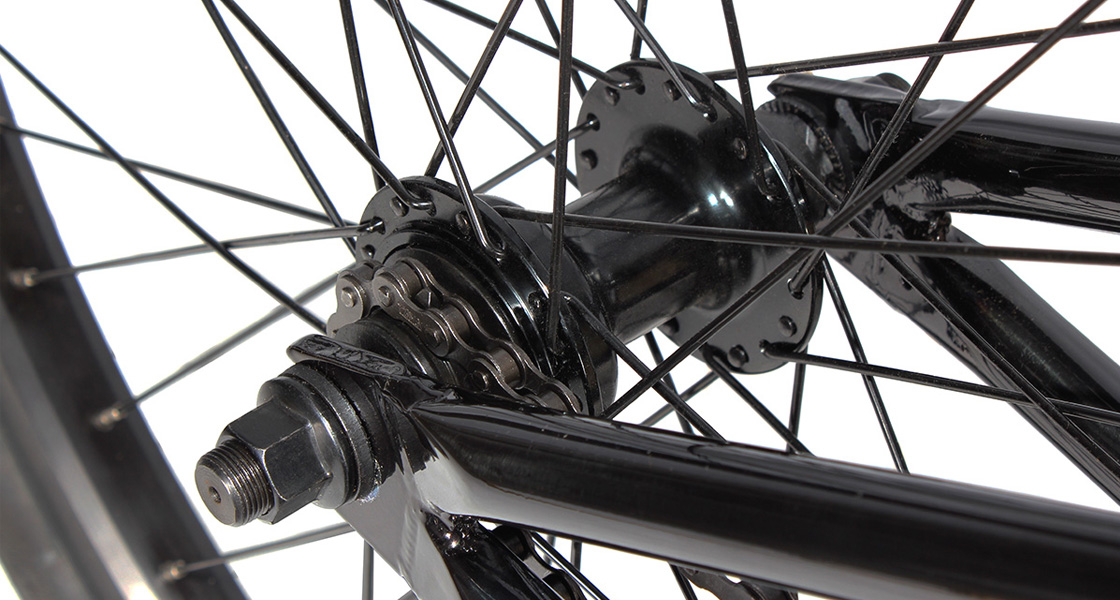

| Rear Hub: | 14mm, fully sealed cassette with 9T, 1 piece driver, 17mm axle nuts |
| Rear Rim: | Alloy double wall 36H |
| Rear Tire: | Innova 24 x 2.125 |

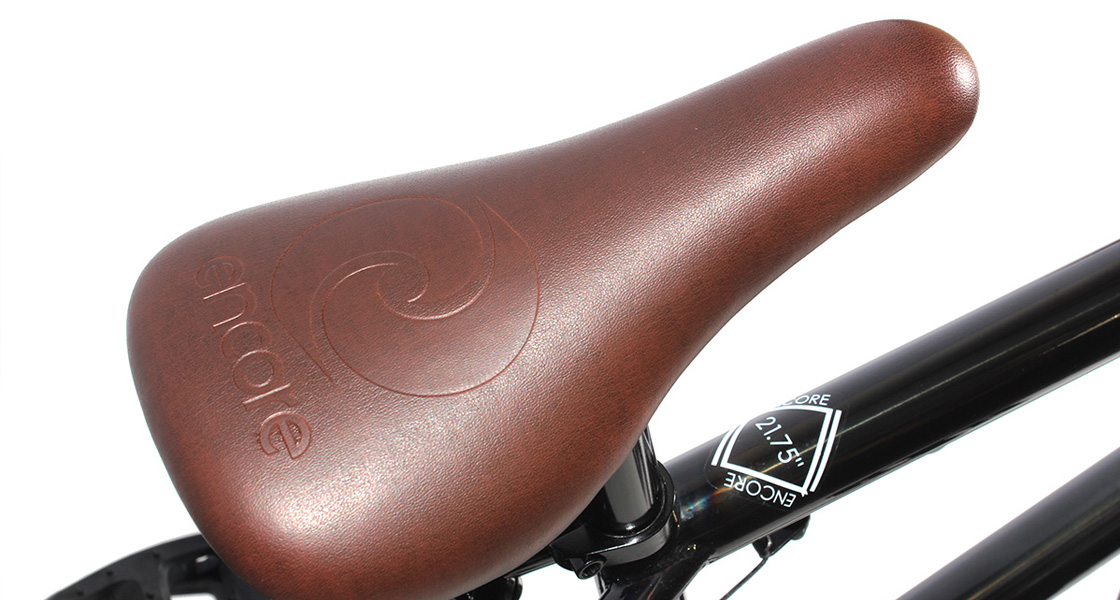

| Seat: | VELO 3mm padded leather cover w/embossed Encore logo |
| Seat Post: | Integrated with seat |
| Pegs: | N/A |
| Weight: | 27.13lbs |
