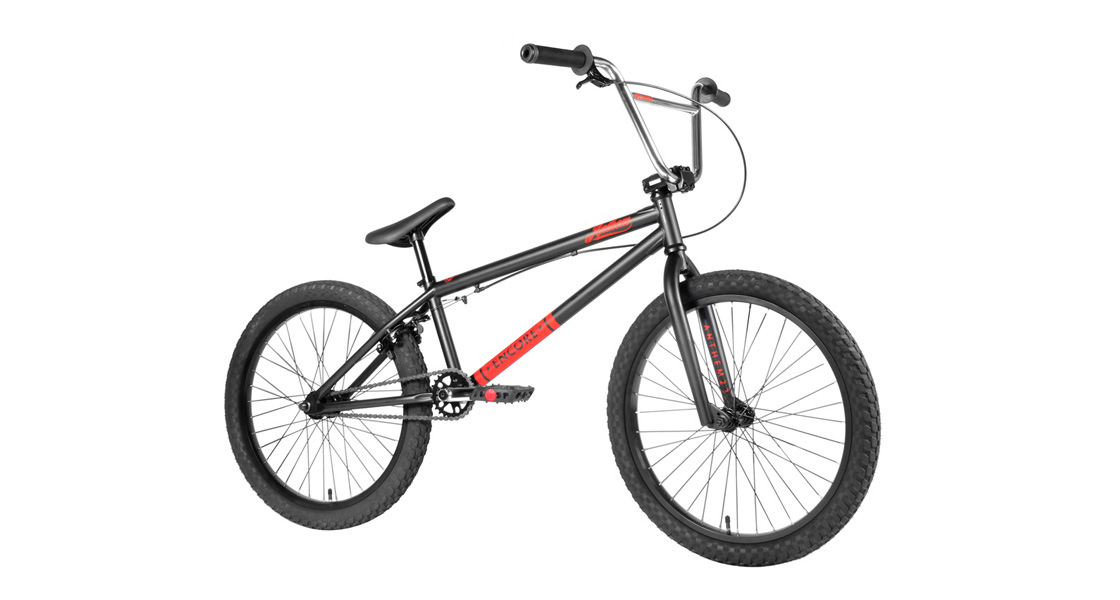

2016 Anthem 22 - Black/Red


2016 Anthem 22 - Black/Red
The 22-inch Anthem is nimble like a 20-inch but has the additional stability of a bigger bike. Built on 22-inch wheel, the 21.75-inch top tube and 8.7-inch bars pair nicely with the 53mm front load stem for a spacious ride. Spec'd with fully sealed front and rear hubs, chromoly down tube, top tube and head tube as well as full chromoly tapered leg forks and double wall rear wheels this bike is not only good looking but also durable. Additional features include 25/9 gearing, 3 piece tubular chromoly cranks, Odyssey Twisted PC pedals, clearance for 2.4 tires and an embossed encore logo on the seat. Keep down time to a minimum with low maintenance components like fully sealed rear cassette, sealed integrated headset and sealed Mid bottom bracket.


Technical Specifications
Top Tube Length:21.75"
Frame: Chromoly down tube, top tube and head tube, HT(°): 74.5, CS ("): 14.25, SO ("): 9, BB ("): 12.25, ST (°): 71
Seat Clamp: Alloy
Fork: Taper leg fork, 100% chromoly, integrated crown race
Handlebar: 8.7" rise, 29" width, 12° backsweep, 2° upsweep, hi-tensile steel
Stem: Alloy front load - 53mm
Grips: Mushroom 147mm
Headset: Integrated sealed 1-1/8"

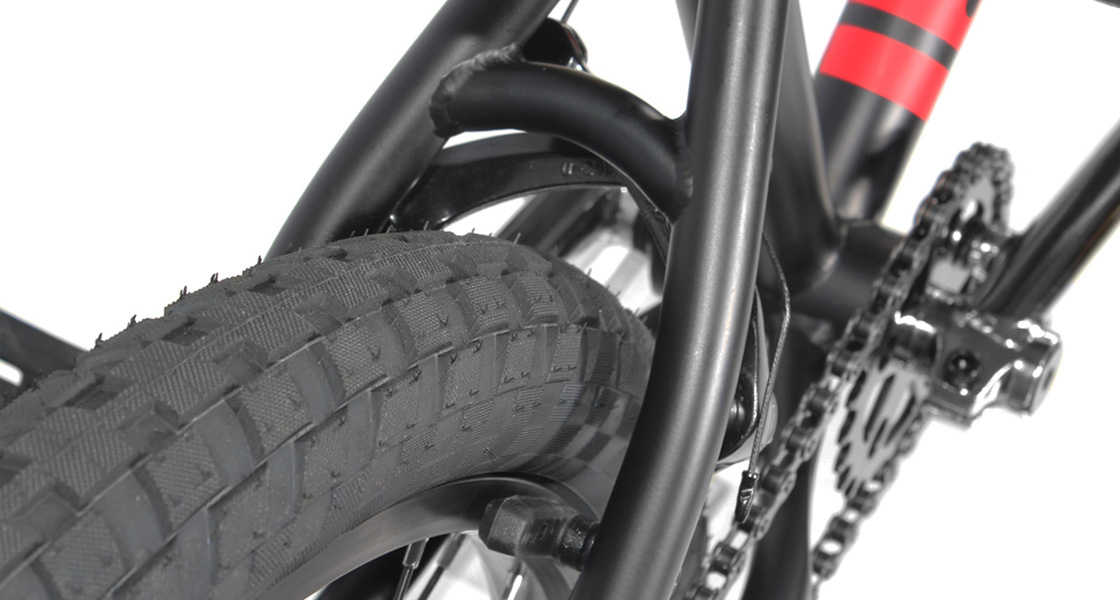

Brake: Wider pull U-Brake for 2.4 tire width
Brake Lever: Alloy for U-Brake
Gearing: 25/9

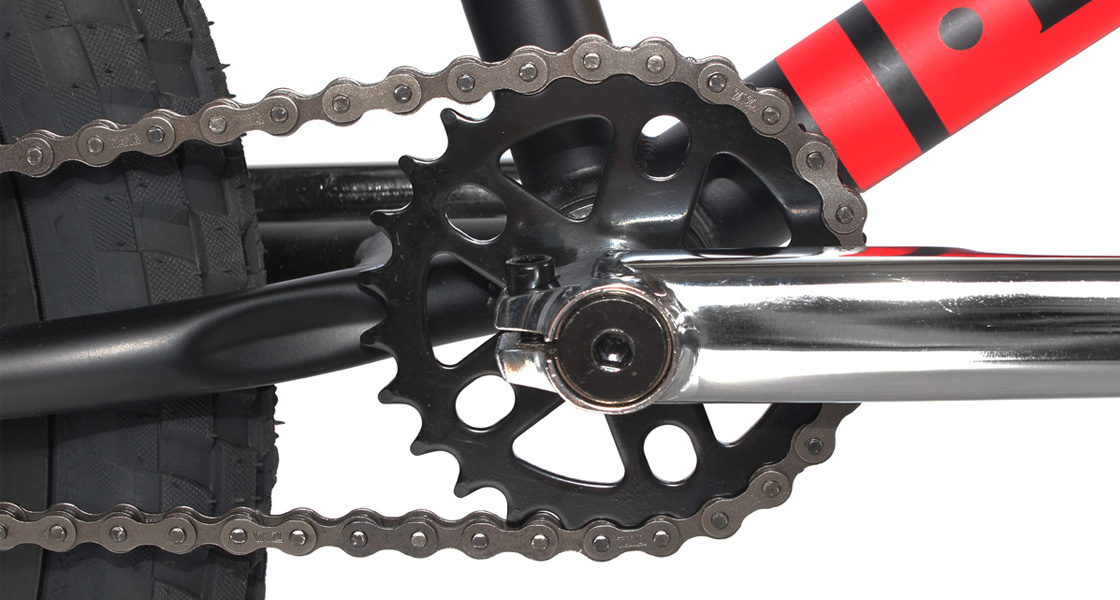

Cranks: Chromoly 3 piece, tubular 175mm
Bottom Bracket: Sealed Mid BB 19mm
Sprocket: Steel, 25T
Pedals: Odyssey Twisted PC plastic 9/16", chromoly spindle
Chain: 410H
Front Hub: 3/8" sealed bearing alloy, 17mm axle nuts
Front Rim: Alloy single wall 36H
Front Tire: Innova 22 x 2.1250
Rear Hub: 14mm, fully sealed cassette with 9T, 1 piece driver, 17mm axle nuts
Rear Rim: Alloy double wall 36H
Rear Tire: Innova 22 x 2.125

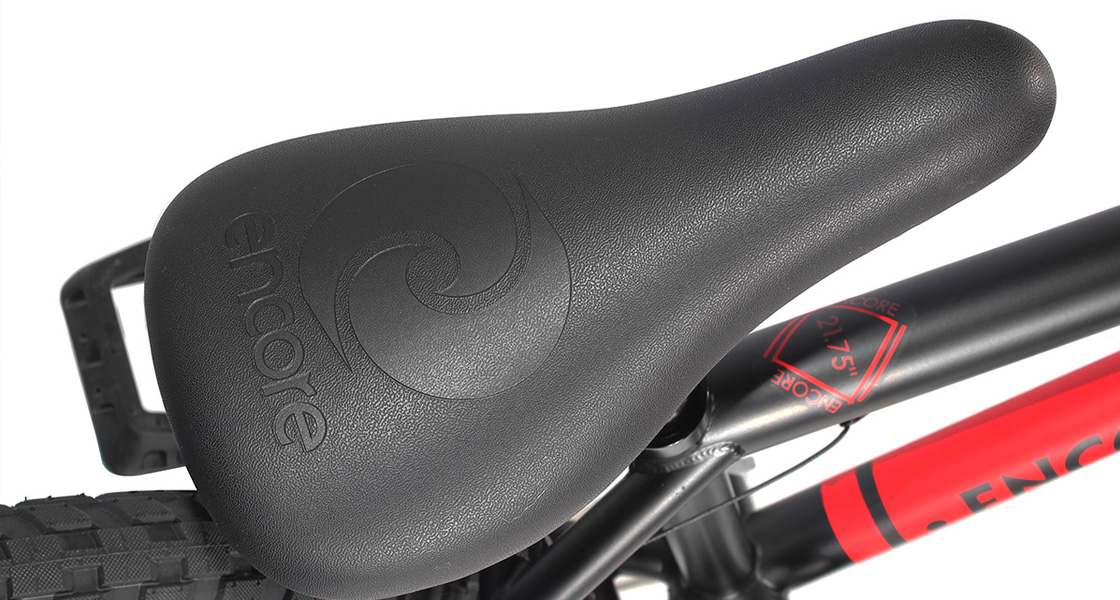

Seat: VELO 3mm padded leather cover w/embossed Encore logo
Seat Post:Integrated with seat
Pegs:N/A
Weight:27.01lbs
