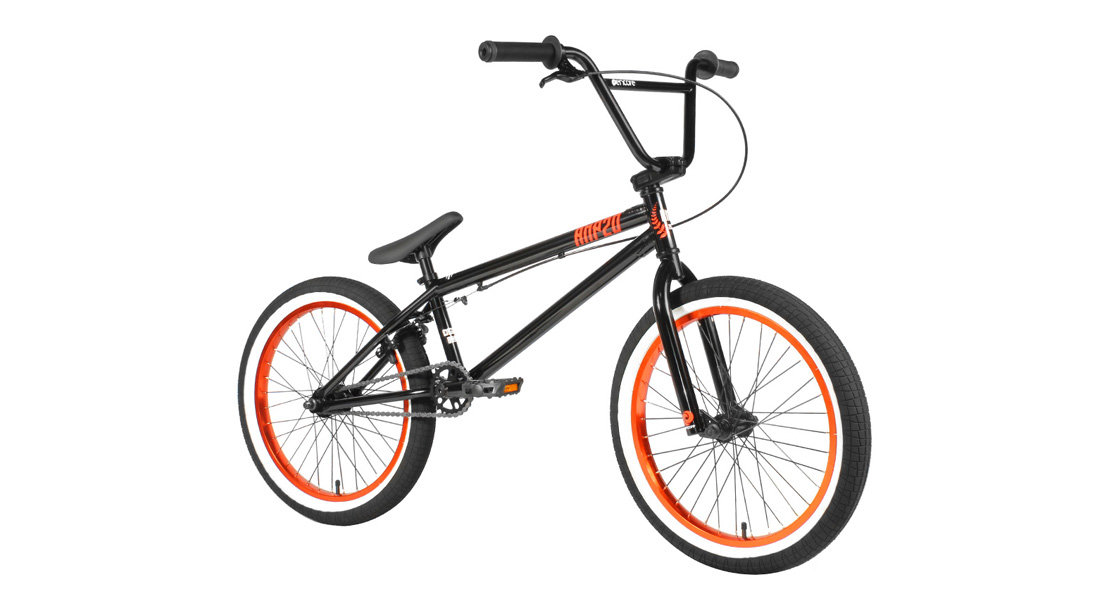

2017 Amp 20 - Black/Orange

2017 Amp 20 - Black/Orange

Technical Specifications
Top Tube Length:20.25"
Frame: Hi-tensile steel frame, HT(°): 74.5, CS ("): 13.25, SO ("): 8, BB ("): 11.5, ST (°): 71
Seat Clamp: Alloy
Fork: Hi-tensile steel, 2 piece
Handlebar: H: 8.25", W: 28", hi-tensile steel
Stem: Alloy top load - 50mm
Grips: Mushroom 147mm
Headset: Standard unsealed 1-1/8"
Brake: Wider pull U-Brake for 2.4 tire width

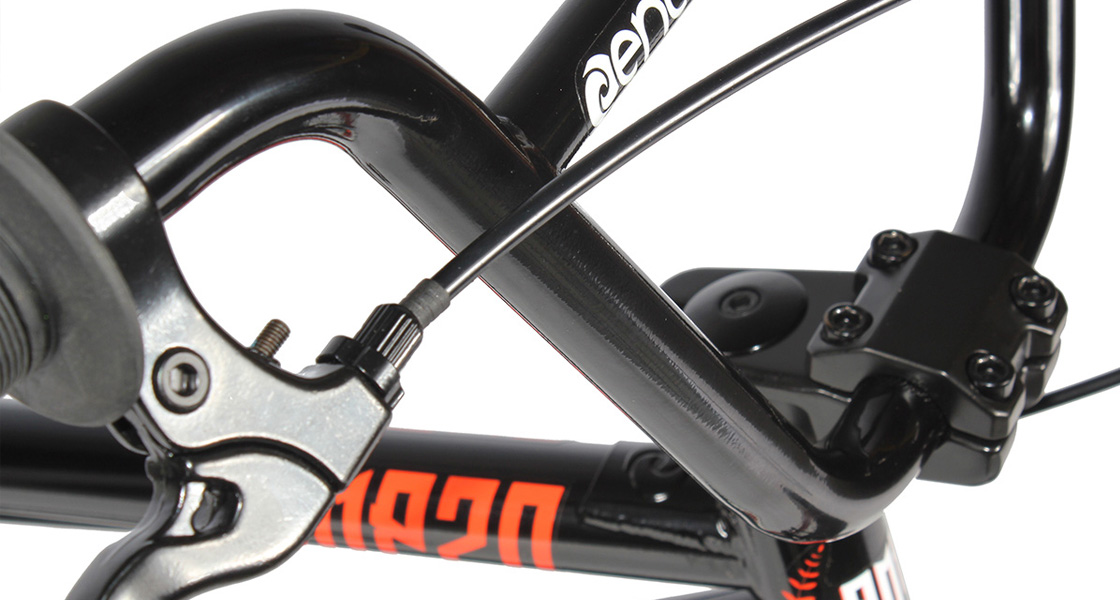

Brake Lever: Alloy for U-Brake
Gearing: 25/9
Cranks: Chromoly 3 piece, tubular 170mm
Bottom Bracket: Sealed Mid BB 19mm
Sprocket: Steel, 25T
Pedals: Wellgo plastic 9/16", chromoly spindle
Chain: 410H

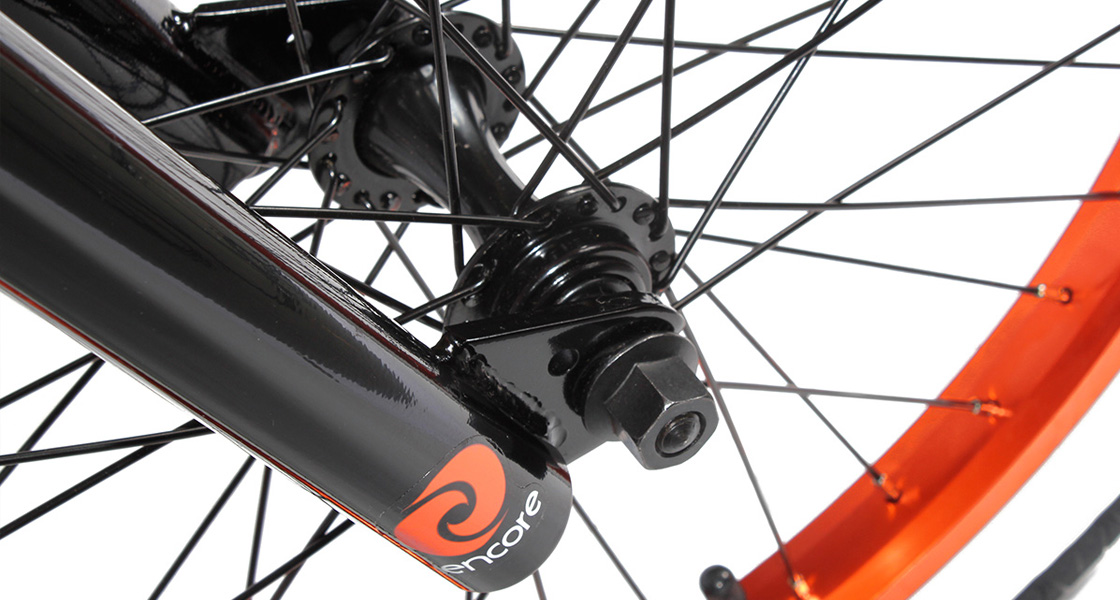

Front Hub: 3/8" unsealed, 17mm axle nuts
Front Rim: Alloy single wall 36H
Front Tire: Innova 20 x 2.30
Rear Hub: 14mm, fully sealed cassette with 9T, 1 piece driver, 17mm axle nuts
Rear Rim: Alloy single wall 36H
Rear Tire: Innova 20 x 2.30
Seat: VELO 3mm padded leather cover
Seat Post:Integrated with seat
Pegs:N/A
Weight:25.10 lbs
