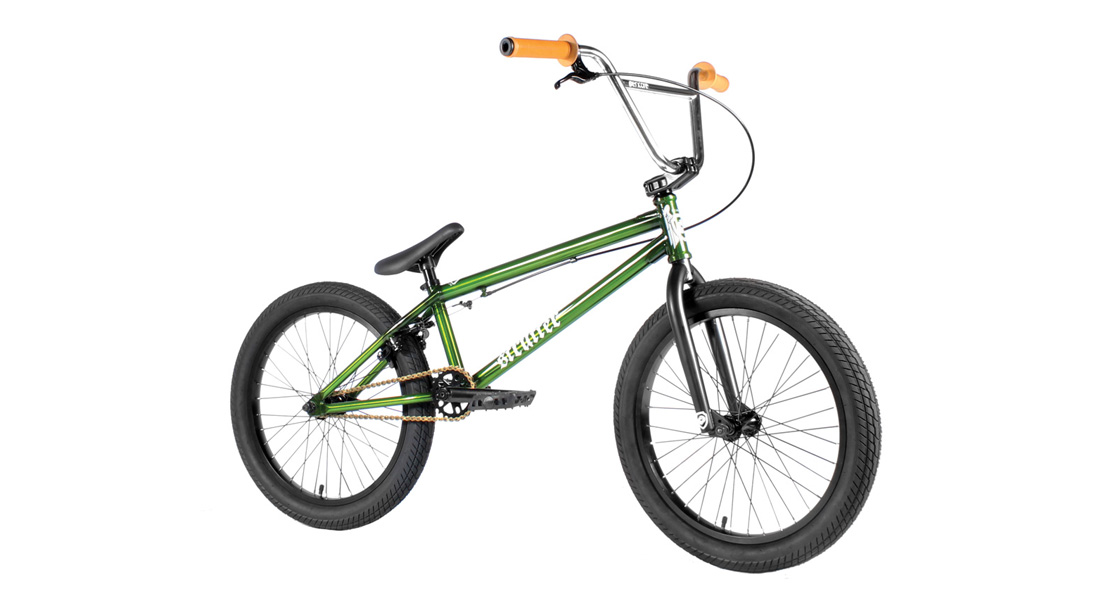

2016 Strutter - Trans Green
2016 Strutter - Trans Green
Built for riders who are quickly progressing and checking tricks off the list, the Strutter is going to be able to withstand more impact and bigger air. Featuring a stronger frame and fork set up, built tough 3 piece tubular cranks and Odyssey Twisted PC pedals, The bigger frame, bars and top load stem make this bike the most spacious of the Encore line. Added clearance in the frame and fork and a stronger brake make the Strutter fully set up for the fattest of aftermarket tires.
Keep down time to a minimum with low maintenance components like fully sealed rear cassette, integrated sealed headset, sealed Mid bottom bracket.
Technical Specifications
| Top Tube Length: | 20.75" |
| Frame: | Hi-tensile steel frame with chromoly head/down tube, HT(°): 74.5, CS ("): 13.25, SO ("): 8, BB ("): 11.5, ST (°): 71 |
| Seat Clamp: | Alloy |
| Fork: | Taper leg fork, chromoly steerer tube, integrated crown race |
| Handlebar: | H: 8.7", W: 29", hi-tensile steel |
| Stem: | Alloy "High Rise" top load - 50mm |
| Grips: | Mushroom 147mm |
| Headset: | Integrated sealed 1-1/8" |
| Brake: | Wider pull U-Brake for 2.4 tire width |
| Brake Lever: | Alloy for U-Brake |
| Gearing: | 25/9 |
| Cranks: | Chromoly 3 piece, tubular 175mm |
| Bottom Bracket: | Sealed MID BB 19mm |
| Sprocket: | Steel, 25T |
| Pedals: | Odyssey Twisted PC plastic 9/16", chromoly spindle |
| Chain: | 410H |
| Front Hub: | 3/8" unsealed alloy, 17mm axle nuts |
| Front Rim: | Alloy single wall 36H |
| Front Tire: | Innova 20 x 2.25 |
| Rear Hub: | 14mm, Fully sealed Cassette with 9T 1 piece driver w 17mm Axle nuts |
| Rear Rim: | Alloy single wall 36H |
| Rear Tire: | Innova 20 x 2.25 |
| Seat: | VELO 3mm padded leather cover |
| Seat Post: | Integrated with seat |
| Pegs: | N/A |
