2016 Riff - Chrome
2016 Riff - Chrome
With added durability features like an integrated head tube with sealed headset and tubular cranks, the Riff is ready for riding. Upgraded features like a machined face plate top load stem complement this spacious set up of a 20.5" frame and 8.5" bars. With added clearance in the frame, fork and brake the Riff is fully set up for the fattest of aftermarket tires.
Keep down time to a minimum with low maintenance components like fully sealed rear cassette, sealed integrated headset and sealed Mid bottom bracket.
Technical Specifications
| Top Tube Length: | 20.50" |
| Frame: | Hi-tensile steel frame, HT(°): 74.5, CS ("): 13.25, SO ("): 8, BB ("): 11.5, ST (°): 71 |
| Seat Clamp: | Alloy |
| Fork: | Hi-tensile steel, 2 piece w/integrated crown race |
| Handlebar: | H: 8.5", W: 29", hi-tensile steel |
| Stem: | Alloy top load - 50mm w/machined face plate |
| Grips: | Mushroom 147mm |
| Headset: | Integrated sealed 1-1/8" |
| Brake: | Wider pull U-Brake for 2.4 tire width |
| Brake Lever: | Alloy for U-Brake |
| Gearing: | 25/9 |
| Cranks: | Chromoly 3 piece, tubular 170mm |
| Bottom Bracket: | Sealed MID BB 19mm |
| Sprocket: | Steel, 25T |
| Pedals: | Wellgo Plastic 9/16", chromoly spindle |
| Chain: | 410H |
| Front Hub: | 3/8" unsealed alloy, 17mm Axle nuts |
| Front Rim: | Alloy single wall 36H |
| Front Tire: | Innova 20 x 2.25 |

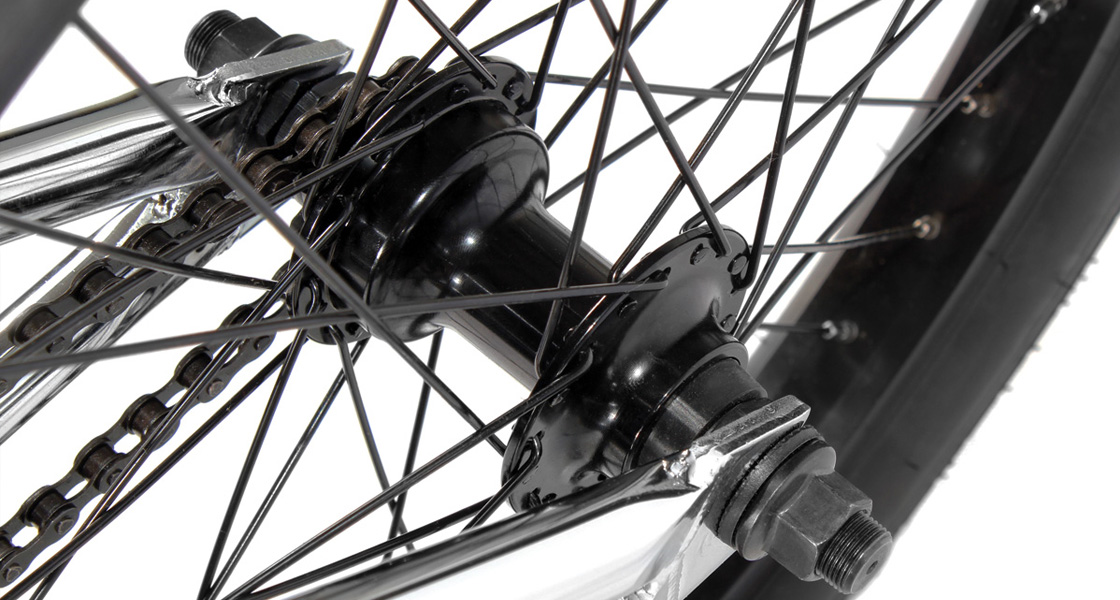

| Rear Hub: | 14mm, fully sealed cassette with 9T, 1 piece driver, 17mm axle nuts |
| Rear Rim: | Alloy single wall 36H |
| Rear Tire: | Innova 20 x 2.25 |
| Seat: | VELO 3mm padded leather cover |
| Seat Post: | Integrated with seat |
| Pegs: | N/A |
