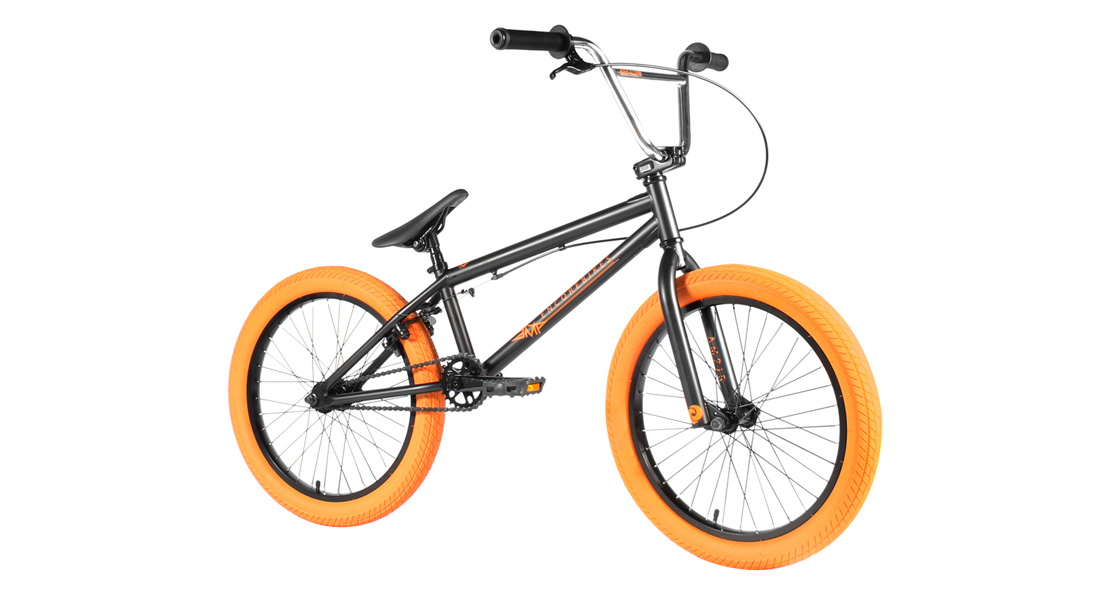

2016 Amp Jr - Black/Orange
2016 Amp Jr - Black/Orange
Built for getting into BMX, the Amp JR is a modified version of the Amp 20. Still based on a 20" wheel set, the AMP JR has smaller frame, bars and stem making this bike easier to manage while still maintaining a true BMX feel. 25/9 gearing, 3 piece cranks and added clearance on the frame, fork and brake for wider aftermarket tires means this bike has all the basics as well as the newest features in BMX.
Keep down time to a minimum with low maintenance components like fully sealed rear cassette and sealed Mid bottom bracket.
Technical Specifications
| Top Tube Length: | 18.5" |
| Frame: | Hi-tensile steel frame, HT(°): 74.5, CS ("): 13.25, SO ("): 8, BB ("): 11.5, ST (°): 71 |
| Seat Clamp: | Alloy |
| Fork: | Hi-tensile steel, 2 piece |
| Handlebar: | H: 8.0", W: 28", hi-tensile steel |
| Stem: | Alloy top load - 40mm |
| Grips: | Mushroom 147mm |
| Headset: | Standard unsealed 1-1/8" |
| Brake: | Wider pull U-Brake for 2.4 tire width |
| Brake Lever: | Alloy for U-Brake |
| Gearing: | 25/9 |
| Cranks: | Chromoly 3 piece, forged 165mm |
| Bottom Bracket: | Sealed Mid BB 19mm |
| Sprocket: | Steel, 25T |
| Pedals: | Wellgo Plastic 9/16", chromoly spindle |
| Chain: | 410H |
| Front Hub: | 3/8" unsealed, 17mm axle nuts |
| Front Rim: | Alloy single wall 36H |
| Front Tire: | Innova 20 x 2.25 |
| Rear Hub: | 14mm, fully sealed cassette with 9T, 1 piece driver, 17mm Axle nuts |
| Rear Rim: | Alloy single wall 36H |
| Rear Tire: | Innova 20 x 2.25 |

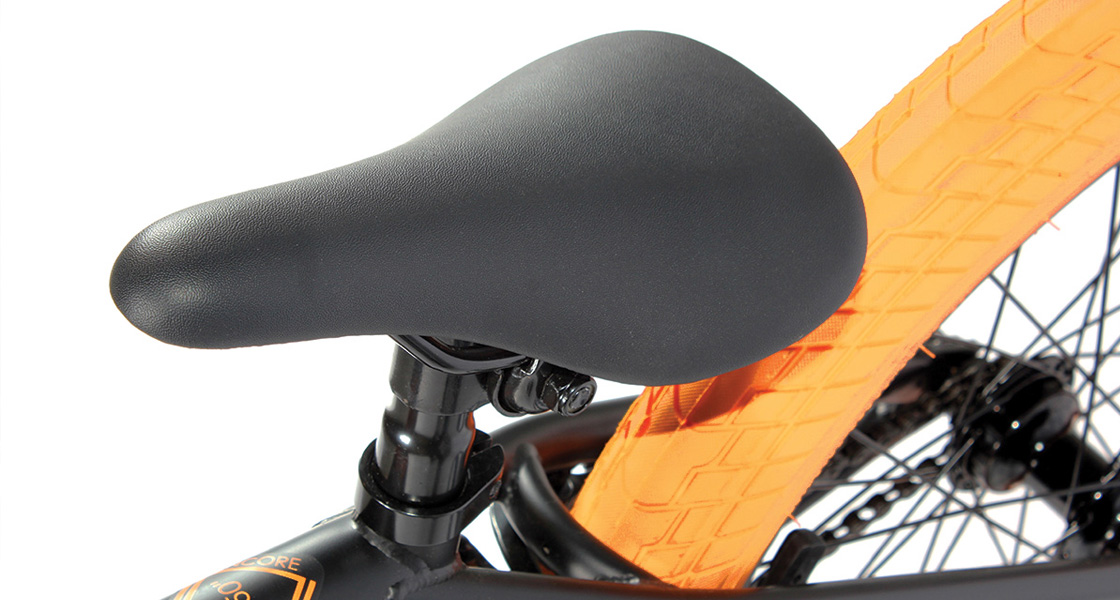

| Seat: | Padded Seat w/rails for more adjustment |
| Seat Post: | Alloy post w/steel guts |
| Pegs: | N/A |
