2016 Amp 20 - Black/Teal
2016 Amp 20 - Black/Teal
Built for getting into BMX, the Amp 20 features a true BMX feel with a 20.25'' frame and bigger handlebars perched on a top load stem. 25/9 gearing, 3 piece cranks and added clearance on the frame, fork and brake for wider aftermarket tires means this bike has all the basics as well as the newest features in BMX to get you going.
Keep down time to a minimum with low maintenance components like fully sealed rear cassette and sealed Mid bottom bracket.
Technical Specifications
| Top Tube Length: | 20.25" |
| Frame: | Hi-tensile steel frame, HT(°): 74.5, CS ("): 13.25, SO ("): 8, BB ("): 11.5, ST (°): 71 |
| Seat Clamp: | Alloy |
| Fork: | Hi-tensile steel, 2 piece |

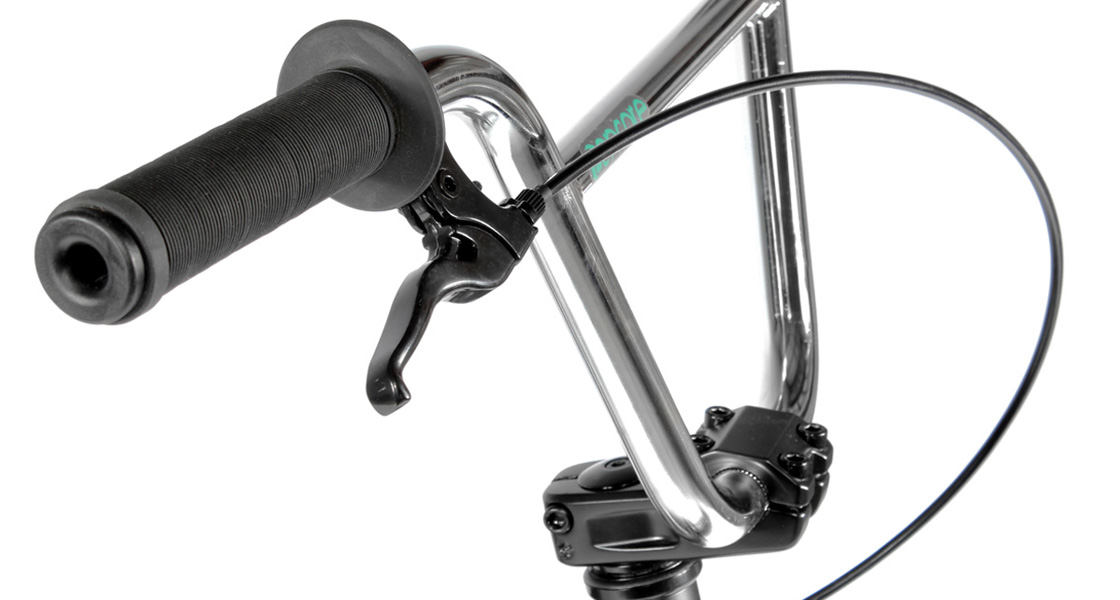

| Handlebar: | H: 8.25", W: 28", hi-tensile steel |
| Stem: | Alloy Top load - 50mm |
| Grips: | Mushroom 147mm |
| Headset: | Standard unsealed 1-1/8" |
| Brake: | Wider pull U-Brake for 2.4 tire width |
| Brake Lever: | Alloy for U-Brake |
| Gearing: | 25/9 |
| Cranks: | Chromoly 3 piece, forged 170mm |
| Bottom Bracket: | Sealed MID BB 19mm |
| Sprocket: | Steel, 25T |
| Pedals: | Wellgo Plastic 9/16", chromoly spindle |
| Chain: | 410H |
| Front Hub: | 3/8" unsealed, 17mm Axle nuts |
| Front Rim: | Alloy single wall 36H |
| Front Tire: | Innova 20 x 2.25 |
| Rear Hub: | 14mm, Fully sealed Cassette with 9T, 1 piece driver, 17mm Axle nuts |
| Rear Rim: | Alloy single wall 36H |
| Rear Tire: | Innova 20 x 2.25 |
| Seat: | VELO 3mm padded leather cover |
| Seat Post: | Integrated with seat |
| Pegs: | N/A |
