2016 Amp 16 - U-Brake - Gloss Green
2016 Amp 16 - U-Brake - Gloss Green
Built for little shredders, the 2016 Amp16 comes with 25/9 gearing, fully sealed rear cassette hub, 3 piece cranks, sealed 19mm euro BB, Encore PC pedals, 2.10 Innova front and rear tires and comfortable mushroom style grips. This geometrically correct set up creates a real BMX feel that younger guys and gals can learn and progress on.
Keep down time to a minimum with low maintenance components like fully sealed rear cassette and sealed Euro bottom bracket.
Technical Specifications
| Top Tube Length: | 16.50" |
| Frame: | Hi-tensile steel frame, HT(°): 74.5, CS ("): 11.25, SO ("): 7.00, BB ("): 9.30, ST (°): 71 |
| Seat Clamp: | Alloy |
| Fork: | Hi-tensile steel, 2 piece |
| Handlebar: | H7" W: 22.5" hi-tensile steel |
| Stem: | Alloy top load - 40mm |
| Grips: | Mushroom 90mm |
| Headset: | Standard unsealed 1-1/8" |
| Brake: | Wider pull U-Brake for 2.4 tire width |
| Brake Lever: | Alloy for U-Brake |
| Gearing: | 25/9 |
| Cranks: | Alloy 3 piece, forged 127mm |
| Bottom Bracket: | Sealed Euro BB 19mm |
| Sprocket: | Steel, 25T |
| Pedals: | Encore Plastic 1/2", chromoly spindle |
| Chain: | 410H |
| Front Hub: | 3/8" unsealed 20H |
| Front Rim: | Alloy single wall 20H |
| Front Tire: | Innova 16 x 2.10 |
| Rear Hub: | 3/8", fully sealed cassette with 9T, 1 piece driver, 17mm axle nuts |
| Rear Rim: | Alloy single wall 20H |
| Rear Tire: | Innova 16 x 2.10 |

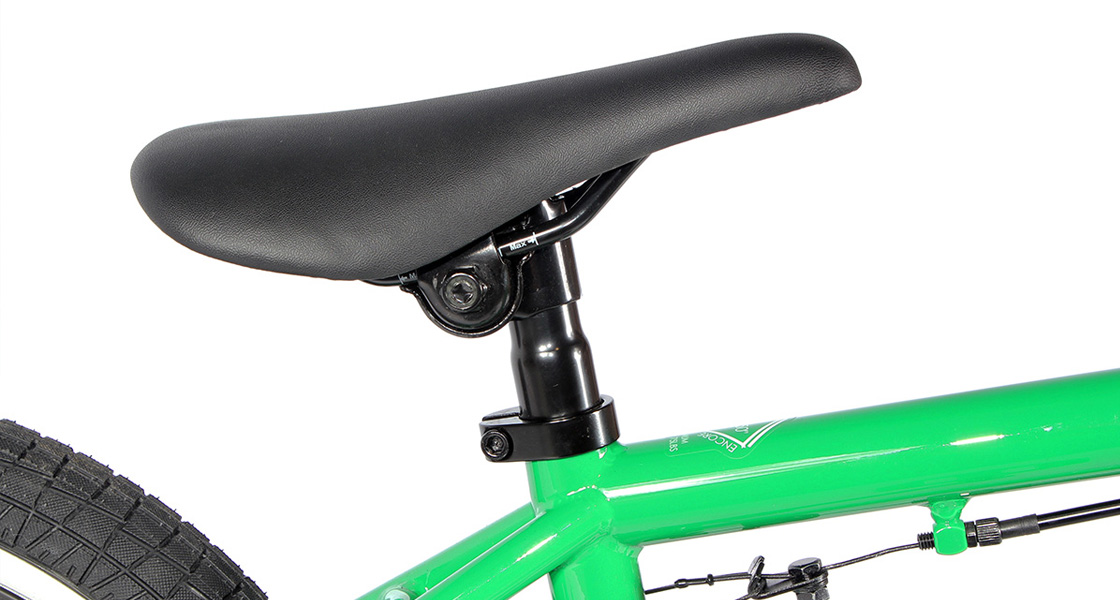

| Seat: | Padded Seat w/rails for more adjustment |
| Seat Post: | Steel post w/steel guts |
| Pegs: | N/A |
